ico dim

SIZE (MM)

708X818
h 1059

CAPACITY

20 kg

ico power

POWER

3,5 kw

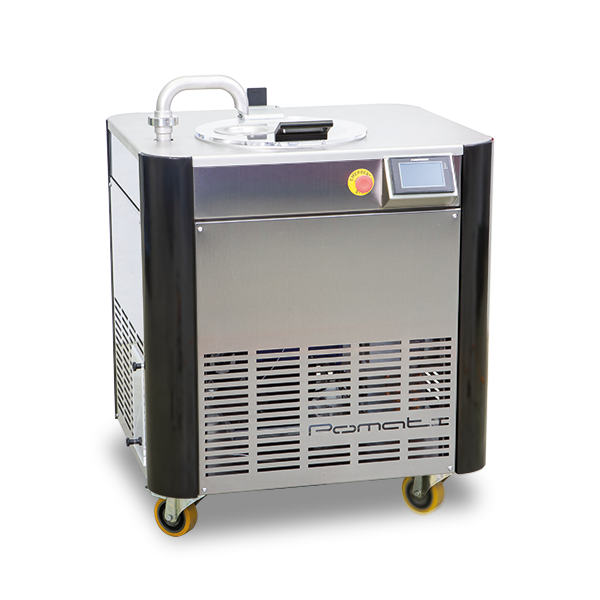

Ball refiner by Pomati.

The ball refiner by Pomati group srl is designed for the production of spreadable creams, anhydrous pates for ice creams, pralinate products and cream sweets.

The machine is equipped with a refrigerator with the function of regulating the heat caused by the
friction generated by the spheres.

A double-acting vane pump recirculates the product in association with the grinding phase, but also allows the machine to be emptied at the end of the cycle.
The vane pumps can be dismantled for faster cleaning.
During periods of shutdown, the machine is kept at a constant temperature.

The Pomati group srl ball mill is suitable for small and medium productions, this machine for
homogeneous and fine grinding of masses for a smooth texture.

REQUEST AN ESTIMATE

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

WATCH THE VIDEO

WHATCH THE VIDEO

FIND OUT NOW

Specifications

Technical specification Motor power 400V three-Phase 50/60 hz
  Built in AISI 304 stainless steel
  Tank heated tank, equipped with refrigeration unit useful to cool the product.
  Microns fineness from 18 to 26 Microns
  Control with touch screen
  Pump vane pump with adjustable speed, with reversal rotation, easy to remove for cleaning and antibacterial GHA treatment
  Tank agitator adjustable speed
  Energy  low energy consumption
  Time adjustable production time
  Touch screen 50 Recipes can be saved on the touch screen
  AIR/ Water connection It does not require
  Drain with lateral and upper tap
     Easily disinfected
     Special voltages on request


Specifications

Technical specification

  • Motor power 400V three-Phase 50/60 hz
  • Built in AISI 304 stainless steel
  • Tank heated tank, equipped with refrigeration unit useful to cool the product.
  • Fineness from 18 to 26 Microns
  • Control with touch screen
  • Removable vane pump for cleaning, with antibacterial GHA treatment
  • Pump: vane pump with adjustable speed, with reversal rotation, easy to remove for cleaning and antibacterial GHA treatment
  • Adjustable speed for the pump
  • Tank agitator: adjustable speed
  • Low energy consumption
  • Adjustable production time
  • 50 Recipes can be saved on the touch screen
  • It does not require an AIR/ Water connection
  • Drain with lateral or upper tap
  • Easily disinfected
  • Special voltages on request
