Transform your tempering machine into a LINE

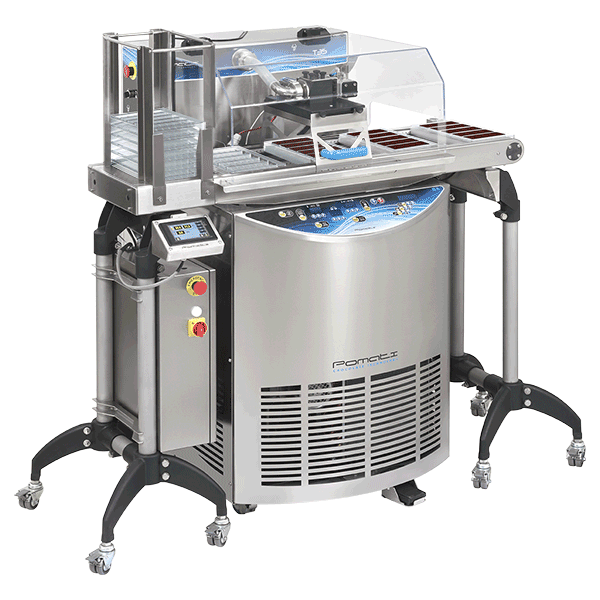

275×175 o 275×135 mm Loading, metering and mould spinning system in polycarbonate, for chocolates, bars of chocolate, napolitains, etc. May be combined with Pomati Tipper model mould upender for manufacturing hollow shapes such as chocolate cups, shells, Easter eggs, etc.
Stage 1: mould feeder tower 15 pcs.capacity

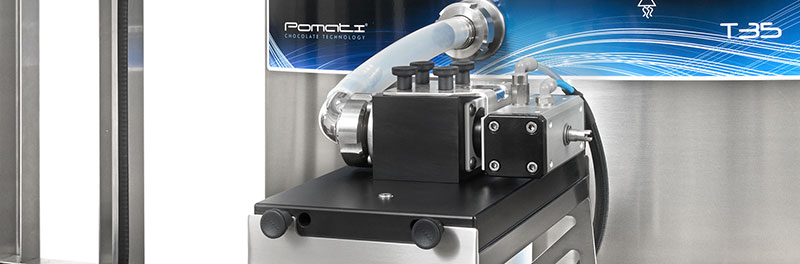

Stage 2: chocolate metering with pneumatic valve combined with heated customisable metering plate. Touchscreen operation.
Stage 3: continuous or timed vibration.

download the brochure request an estimate

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

Watch the video

cts info

For all

The system can be combined with Pomati T20 and T35 machines or with machines already installed.

cts info

For all

The system can be combined with Pomati T20 and T35 machines or with machines already installed.

Specifications

Technical features Capacity
6 moulds per minute, depending on product type

Mold/blister
Mould dimensions: 275×135 or 275×175 mm

Control
Control panel: PLC touchscreen

Structure
Pivoting wheels
  Power
240 V / single phase / Kw 0.4 (Special volltages upon request)

Mechanical features
Compressed air connection

Specifications

Technical features

  • Capacity: 6 moulds per minute, depending on product type
  • Mold/blister: Mould dimensions: 275×135 or 275×175 mm
  • Control: Control panel: PLC touchscreen
  • Structure: Pivoting wheels
  • Power: 240 V / single phase / Kw 0.4 (Special volltages upon request)
  • Mechanical features: Compressed air connection
