ico dim

SIZE (MM)

1610X1080
h 1300

CAPACITY

6 moulds per minute

ico power

POWER

0,5 kw

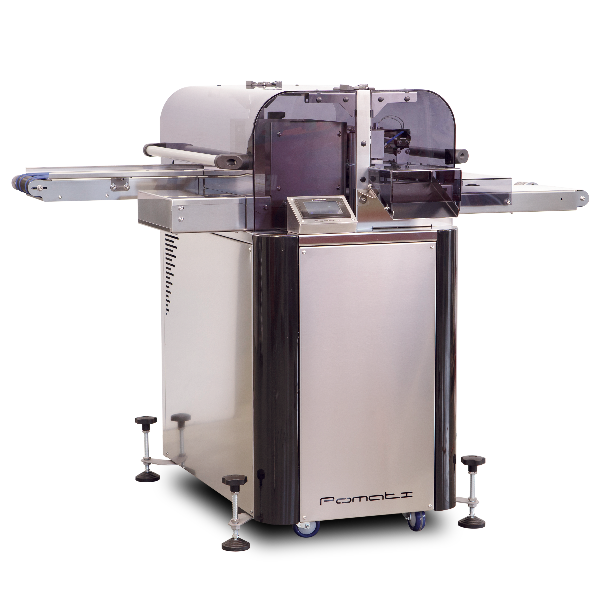

Automatic demolding machine

Designed to automate the extraction of: pralines, tablets and the like from molds at the end of cooling.

Designed to ensure maximum ease of use for the operator, it is equipped with the latest generation icon software, which can be set from the touch screen panel.

The demodeler to complete the modeling lines simplifies the feeding to any packaging lines.

Unloading is possible on conveyor belt or on trays fed by automatic loader.
Compatible with horizontal tunnel, vertical tunnel and existing lines.

Request an estimate

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

WATCH THE VIDEO

WATCH THE VIDEO

FIND OUT NOW

Specifications

Technical specification Loading belt with belts
  Unloading conveyor belt
  Low energy consumption
  Structure in AISI 304 steel
  Main movements with brushless motors
  Pneumatic handling cylinders
  Product unloading trays
  Max 6 molds per minute
  Volt. 240 – 50 / 60Hz – 0.5 Kw – single phase
Air min. 5 BAR consumption 15l/m
(special voltages on request)
Accessories: MOULD SHIFTER 90° (TRS2)

Specifications

Technical specification

  • Loading belt with belts
  • Unloading conveyor belt
  • Low energy consumption
  • Structure in AISI 304 steel
  • Main movements with brushless motors
  • Pneumatic handling cylinders
  • Product unloading trays
  • Max 6 molds per minute
  • Volt. 240 – 50 / 60Hz – 0.5 Kw – single phase
    Air min. 5 BAR consumption 15l/m
    (special voltages on request)

Accessories

  • MOULD SHIFTER 90° (TRS2)
