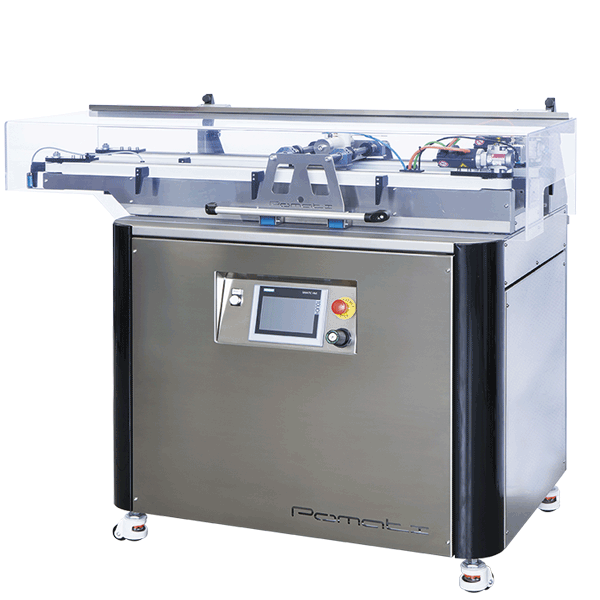

Overturning, vibration and cleaning of molds

Tipper borns for overturning, vibration and cleaning of polycarbonate molds (175×275) and give the possibility to have two types of working. Massive products: such as tablets, napolitaines, etc. Hollow bodies: as shells for pralines, chocolate eggs, glasses, etc. The exces of chocolate is recovered automatically

download the brochure request an estimate

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

Watch the video

taglio

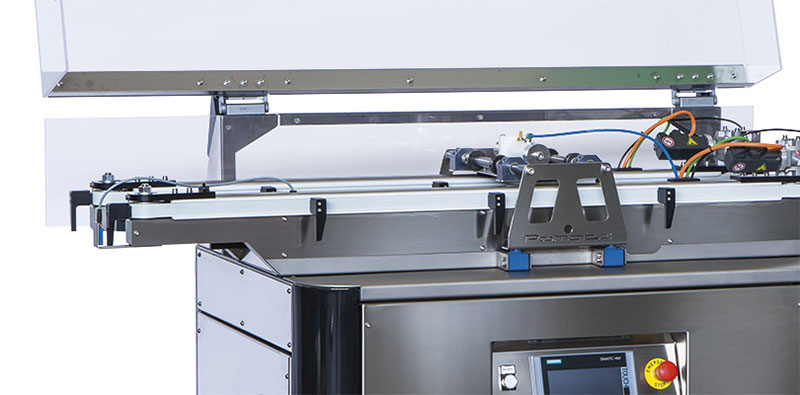

Programmable

Speed, vibration time and heating can be programmed from Touch panel to suit the production needed.

taglio

Programmable

Speed, vibration time and heating can be programmed from Touch panel to suit the production needed.

Specifications

Technical features Structure
inox AISI 304 alloy

Conveyor Belt
Variable speed of the belt

Control
Adjustable vibration intensity pneumatically from the control panel

Cleaning
Extraction of tank collecting chocolate for rapid cleaning and washing

Mechanical features
Anti-vibration system for absorption of the vibrations of the machine
  Power
Volt 100/240 – Hz 50/60 – Kw. 2 Three Phase

Dimensions
mm 800 x 1550 x h 1250

Specifications

Technical features

  • Structure: inox AISI 304 alloy
  • Conveyor Belt: Variable speed of the belt
  • Control: Adjustable vibration intensity pneumatically from the control panel
  • Cleaning: Extraction of tank collecting chocolate for rapid cleaning and washing
  • Mechanical features: Anti-vibration system for absorption of the vibrations of the machine
  • Power: Volt 100/240 – Hz 50/60 – Kw. 2 Three Phase
  • Dimensions: mm 800 x 1550 x h 1250

Request an estimate
