OSM – molds loader with pre-heating function

Designed for automatic loading and pre-heating of polycarbonate molds (175×275). A loading tower molds feeds the tape to the step of pre-heating effected by four infrared lamps inside a cover. Possibility to load manual or automated connected to existing machines. Speed and temperature of heating are managed by a simple control panel.

Available for:
One Shot Depositor OSD-5
One Shot Depositor OSD-10

Technical characteristics:

  • Totally AISI 304 stainless structure
  • Possibility to use with different sizes of moulds:
  • (135×275 – 175×275 – 205×275)
  • Variable speed of belt
  • Heating adjustable through digital instrument
  • Quantity molds of tower load nr. 16
  • Inspection of Area lamp infrared
  • Easy handing through wheels with brakes
  • Rapid extraction of working belt for cleaning and washing operations
  • Volt 100/240 – Hz 50/60 – Kw 1,2 Single-phase (special voltages on request)
  • Dimensions: mm.500x1450xh.1.480
download the brochure

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

OSV – Vibrating table for OSD molds

Designed for vibration products made with One Shot system where an horizontal oscillation is required. It can also be used for other types of productions, such as tablets, only chocolate pralines, pralines with almonds, hazelnuts and so on.

Available for:
One Shot Depositor OSD-5
One Shot Depositor OSD-10

Technical characteristics:

  • Totally AISI 304 stainless structure
  • It can be used with chocolate molds with different sizes (135 x 275 – 175 x 275 – 205 x 275)
  • Variable belt speed
  • Vibration intensity pneumatically adjustable from the control panel
  • Power Vibration editable
  • Vibration powered by compressed air
  • Easy handling through wheels with brakes
  • Rapid extraction of the working belt for the cleaning operation
  • Vibration-damping system to absorb vibration of the machine structure
  • Volt 100/240 – Hz 50/60 – KW 0,2 Single phase
  • Dimensions: mm 682 x 1190 x 565
download the brochure
pomati chocolate technology vibrante download
piastre dosanti OSD

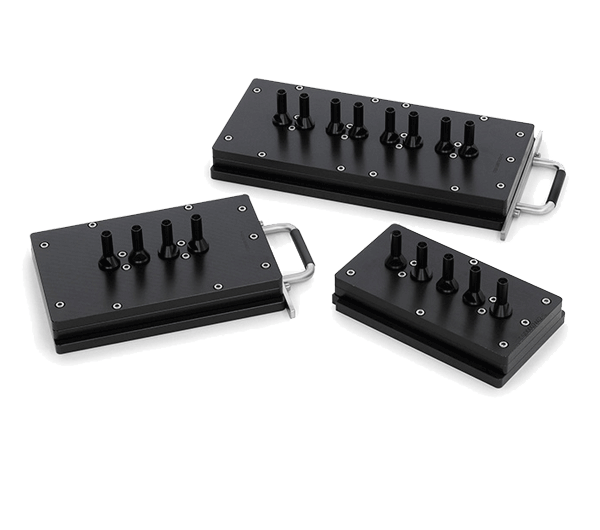

OSD Dosing plate

Available for:
One Shot Depositor OSD ZERO
One Shot Depositor OSD-5
One Shot Depositor OSD-10
